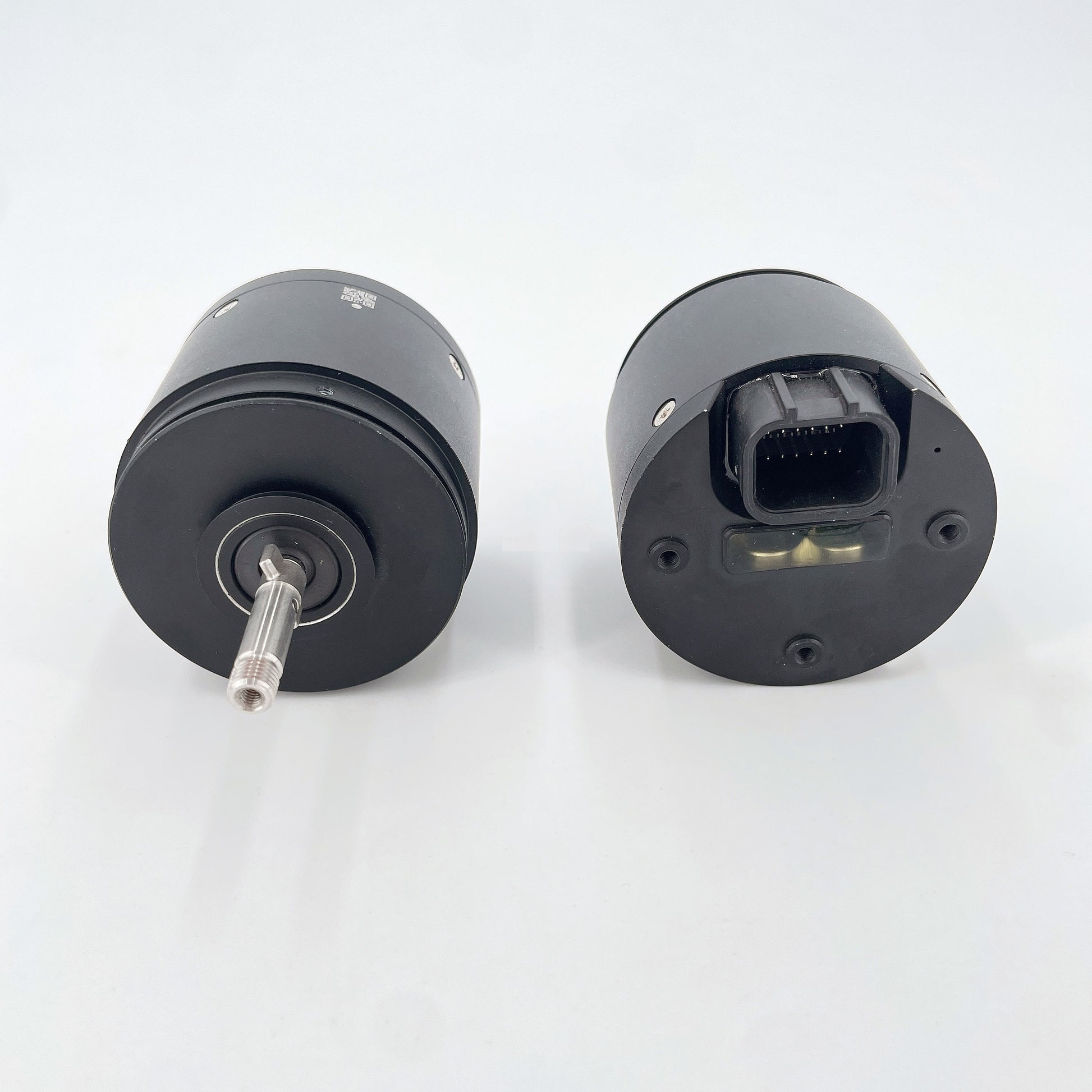

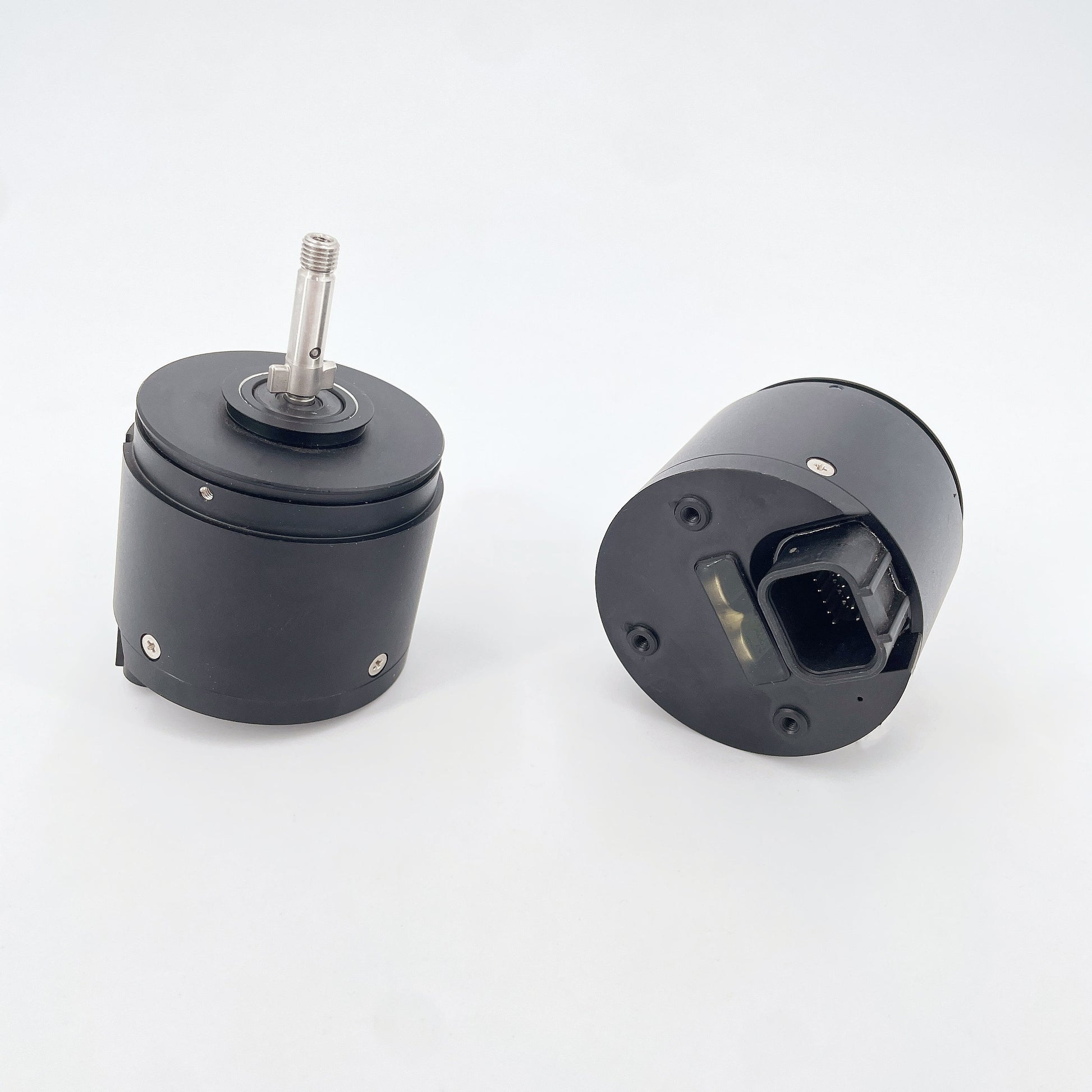

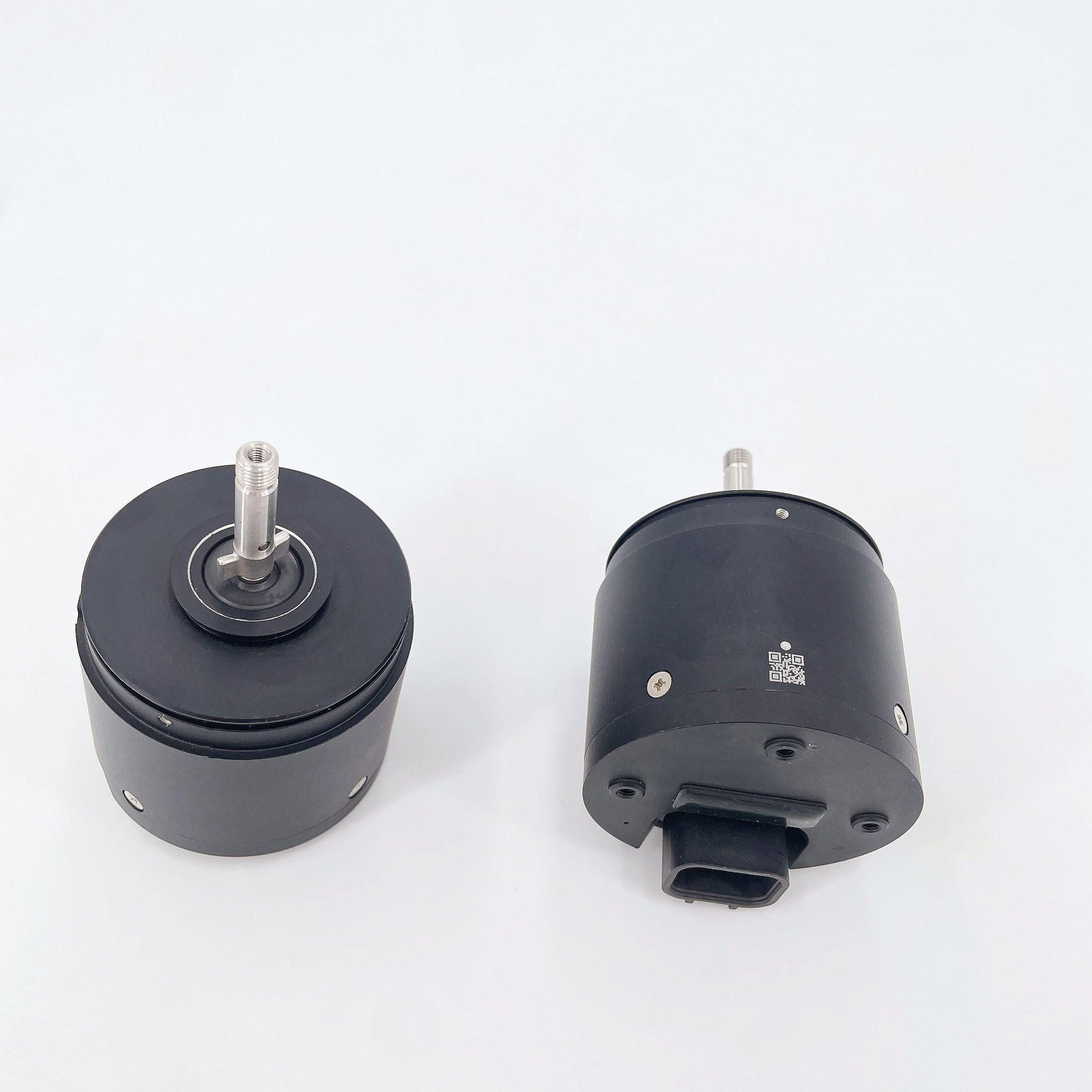

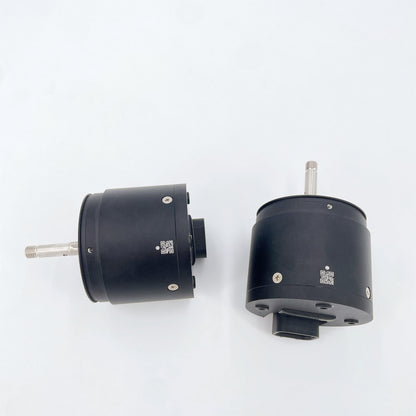

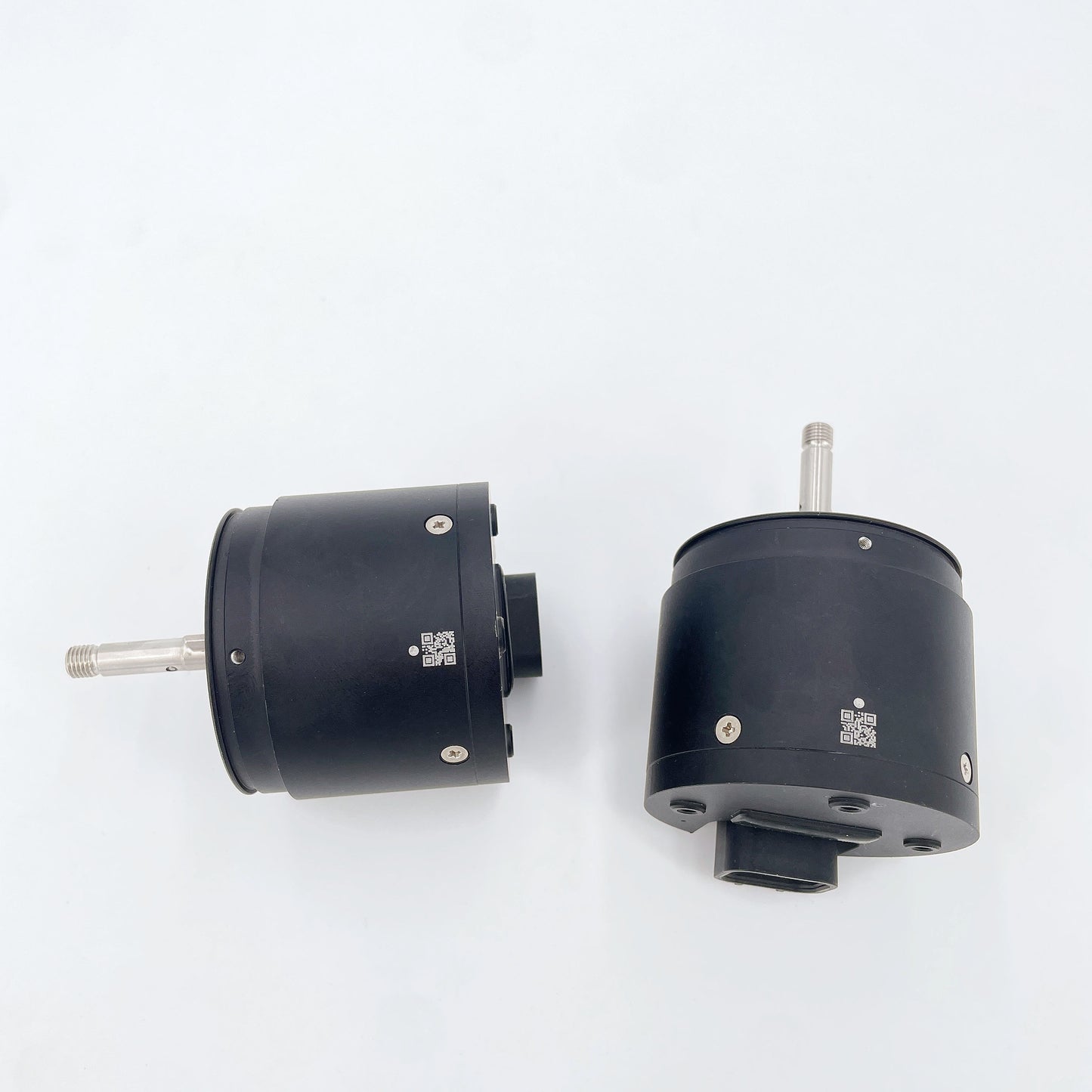

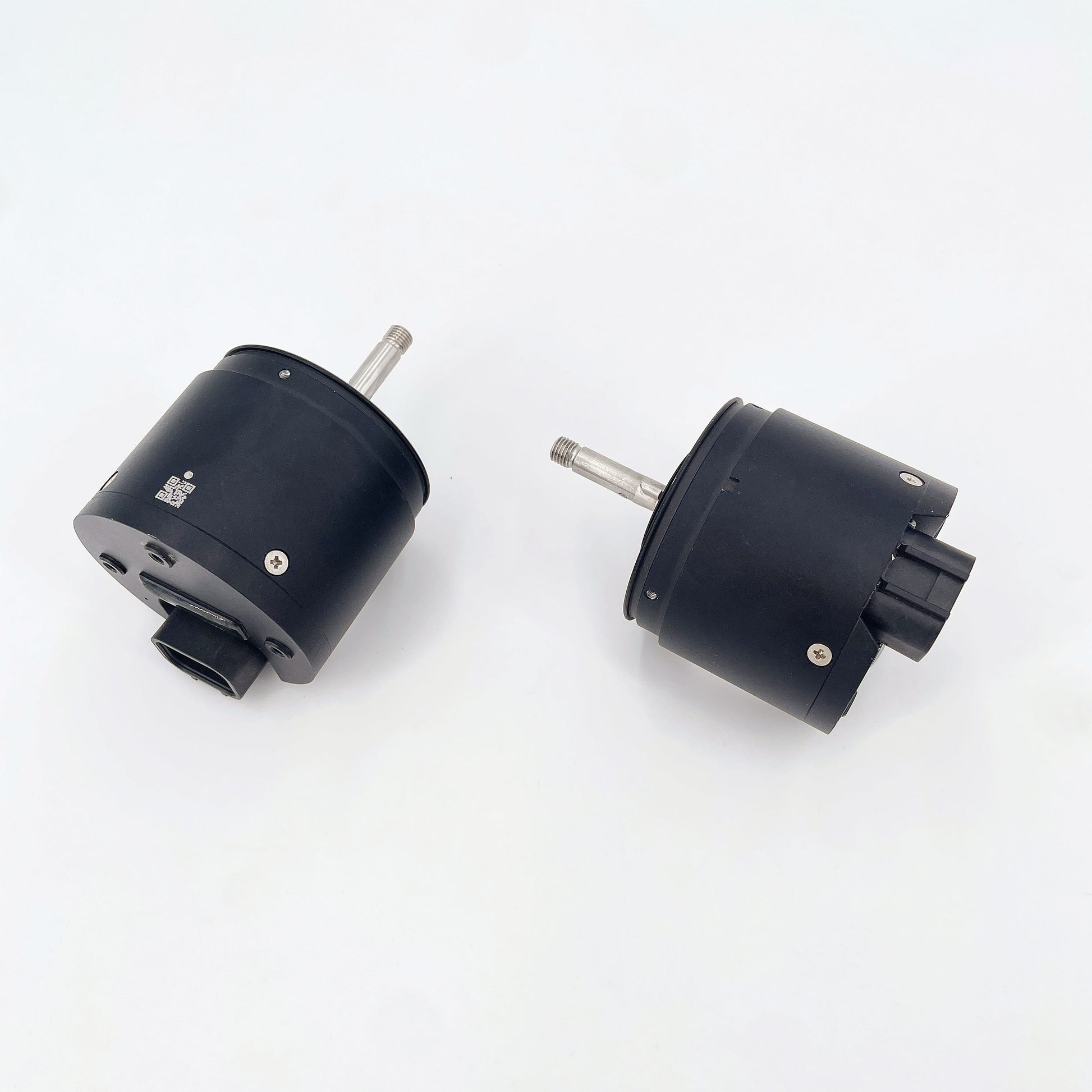

Agras T40 PN 301-00000-12 Impulse Pump Motor | Flow Actuator for Centrifugal Spraying

In the field of remotely piloted aircraft for precision agriculture, the integrity of the fluid ejection system is what determines the effectiveness of the mission. The Impeller Pump Motor PN 301-00000-12 is the electromechanical component responsible for generating the pressure necessary to power the centrifugal atomizers. In agricultural aviation, a pressurization failure not only results in poor distribution of inputs, but can also cause overheating of the hydraulic system and immediate abort of the sortie.

Magallan Aerospace Supply recognizes that heavy-lift drones, such as those in the T40 and T50 lines, operate under severe torque conditions and constant exposure to corrosive particles. Therefore, this original replacement motor is treated as a critical airworthiness item, ensuring that the drone maintains its ultra-low volume (UBV) spray pattern with the reliability required by aerospace standards.

What it is and how it works.

This device is a high-efficiency brushless electric motor integrated with a magnetic or mechanical coupling designed to drive the internal impeller of the drone's centrifugal pump. It converts electrical energy from the Power Distribution Unit (PDU) into high-speed rotational kinetic energy.

The operation is based on precise control via a PWM (Pulse Width Modulation) signal sent by the flight controller. Upon receiving the command, the PN 301-00000-12 motor instantly adjusts its rotation to maintain a constant flow rate, regardless of fluid density or flight altitude. Its sealed architecture prevents the pressurized liquid from coming into contact with the motor coils, a technological advantage that prevents short circuits and premature oxidation.

Operational Applications in Aviation and Drones

Pressurization of Atomization Systems

It acts as the heart of the hydraulic system, sending the pesticide from the main tank to the centrifugal nozzles with regulated pressure, essential for the formation of droplets of controlled micron size.

Fleet Maintenance and Overhaul (MRO)

Standard replacement component for repairing pumps that exhibit loss of torque, abnormal noises (a sign of bearing wear), or failure to respond to commands from the GCS (Ground Control Station).

Fluid Management in Heavy Loads

Essential in missions where the drone needs to operate with high flow rates for soil washing or application in dense crops, where the mechanical demand on the pump is at its maximum.

Technical and Operational Benefits

• Operational Reliability: High-precision bearings designed for thousands of high-speed operating cycles.

• Flow Rate Precision: Immediate response to acceleration commands, ensuring no application "gaps" during border maneuvers.

• Reduced Failures: The brushless design eliminates internal friction wear, dramatically increasing the TBO ( Time Between Overhaul ) of the spraying system.

• Simplified Integration: Original connectors that guarantee a moisture seal and facilitate quick replacement in the field ( Fast Field Repair ).

• Performance Optimization: Low current consumption relative to the torque generated, preserving the autonomy of the aircraft's main battery.

Key Technical Differentiators

• Industrial Grade Sealing: Advanced protection against the ingress of corrosive chemicals and dust, common in harsh agricultural operating environments.

• Efficient Heat Dissipation: Metal casing designed to dissipate heat generated during long-duration applications, preventing thermal throttling .

• Backward Compatibility: Although optimized for the T40 platform, its architecture is compatible with the new T50 and T25 series pumping systems, unifying the parts inventory.

• Low Vibration: Factory dynamic balance that minimizes resonance in the drone's carbon fiber arms.

Technical Specifications

Compatibility and Installation Requirements

• Compatible Models: Agras T40, T50, T20P, T25.

• Installation Requirements: Requires disassembly of the lower centrifugal pump housing. It is essential to apply sealant to the cable entry points and check the impeller alignment to avoid mechanical friction after reassembly.

• Tools: Precision hex keys and a low-scale torque wrench are recommended to avoid damage to the fastening threads.

Important Technical Guidelines and Considerations

1. Leakage Test: After replacing the motor, perform a flow test with clean water to ensure that the pump seals were not compromised during the replacement.

2. System Cleaning: The accumulation of solid residue inside the pump can clog the impeller, causing overload and premature burnout of the new motor. Always keep the line filters clean.

3. Signs of Wear: Replace the motor immediately if you notice fluctuations in flow rate indicated on the flight controller display, preventing cascading damage to the ESC (Electronic Speed ​​Controller).
