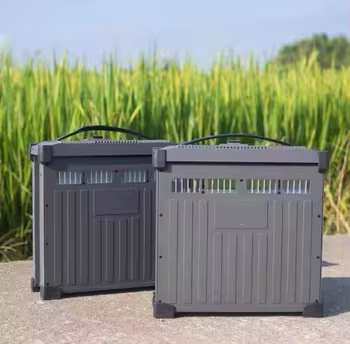

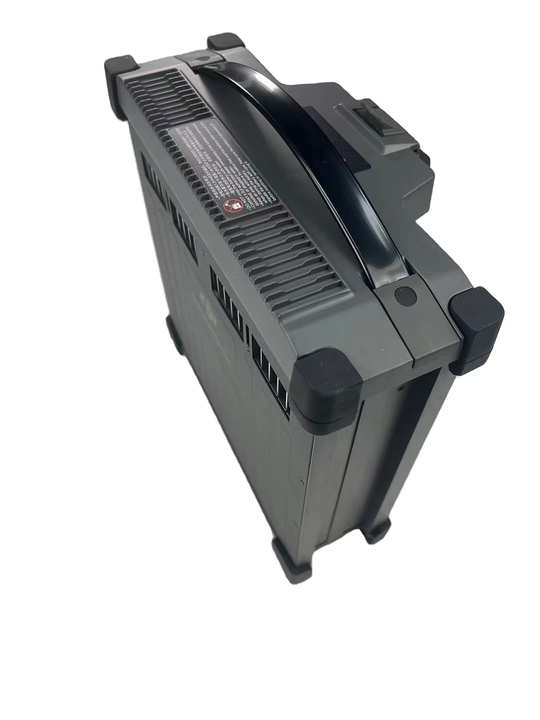

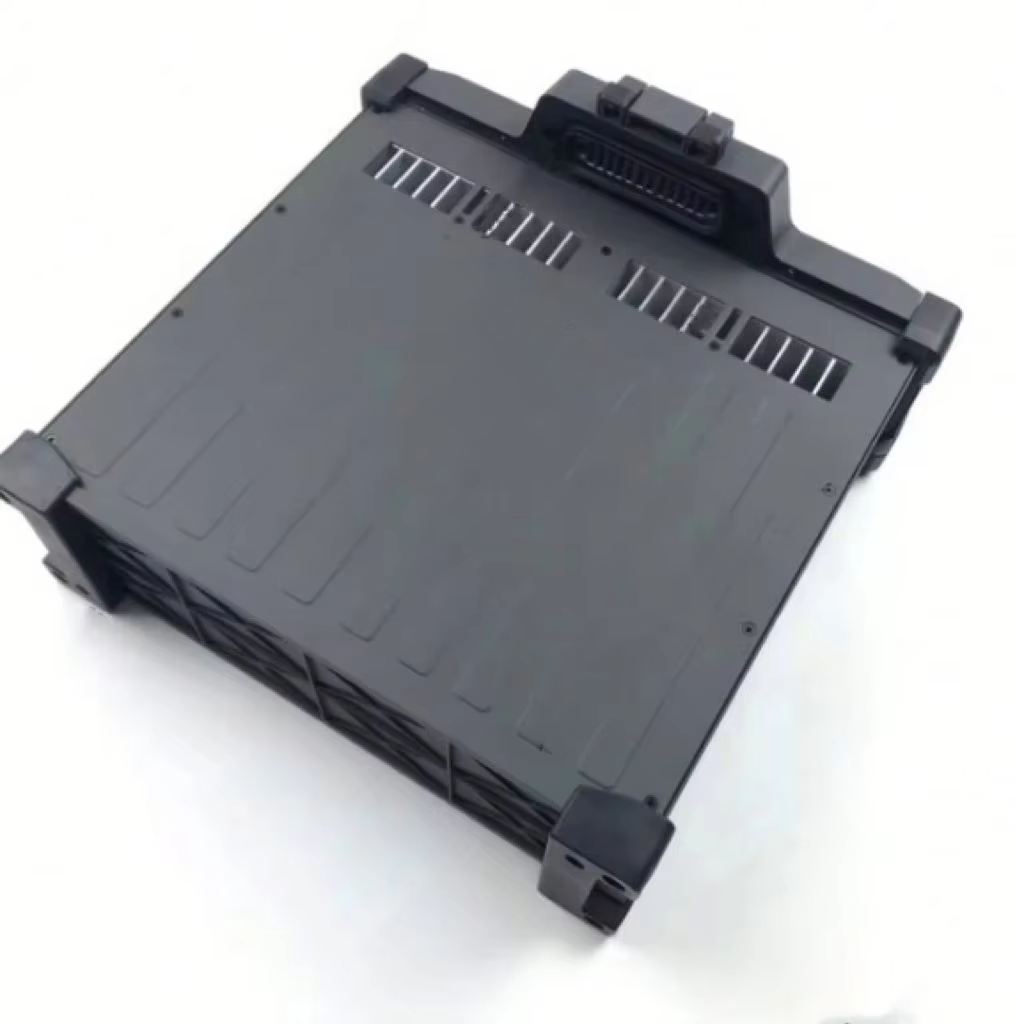

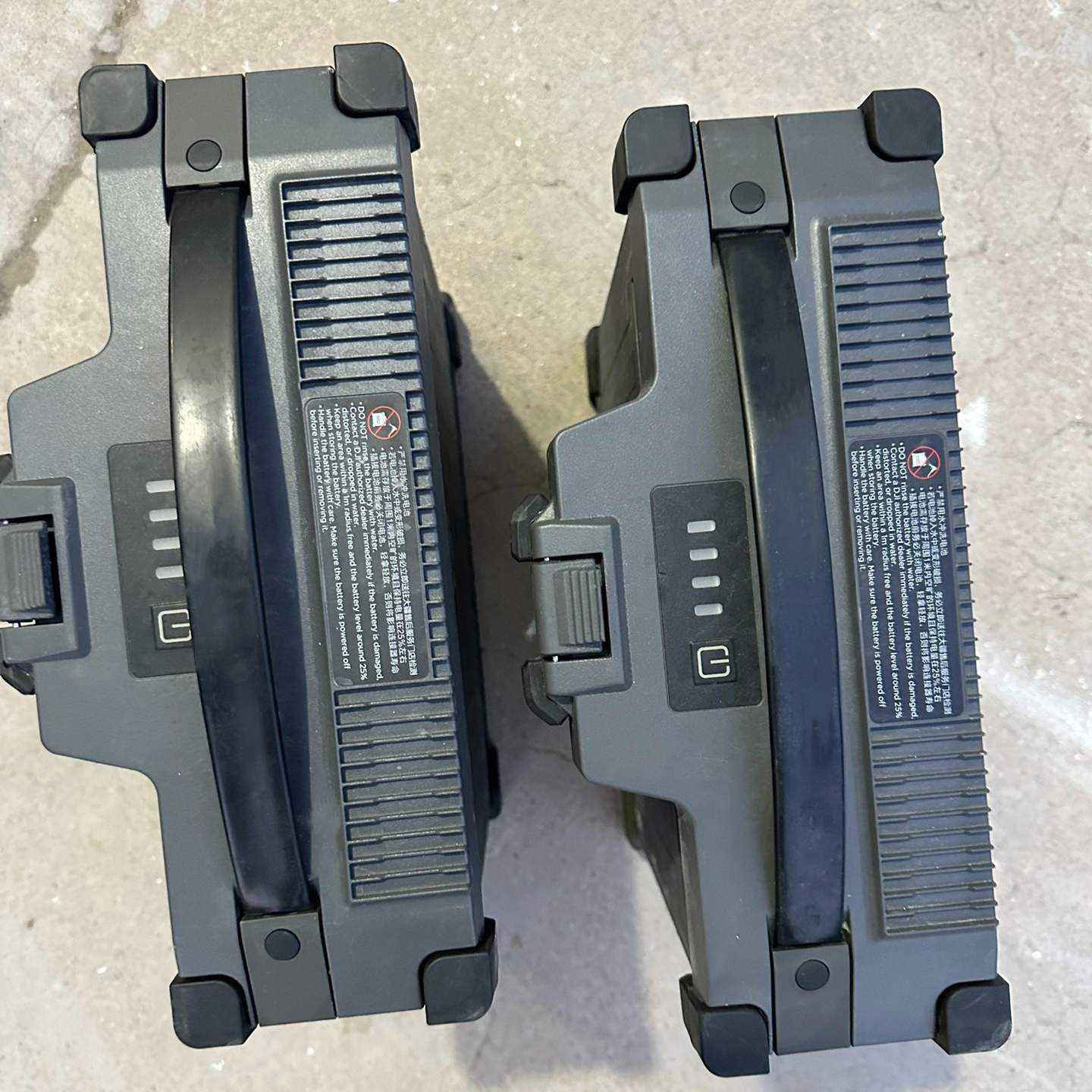

DJI Agras T50 DB1560 30000mAh Smart Battery for Agricultural Spraying Drone

The DB1560 Intelligent Flight Battery represents the pinnacle of energy storage engineering for contemporary agricultural aviation. Designed specifically for the DJI Agras T50 drone ecosystem , this high-capacity unit is not just a power supply component, but a sophisticated energy management system essential for maintaining operational cadence in high-performance spraying and dispersal missions. In the aerospace sector focused on precision agriculture, the reliability of the power source is the determining factor between field efficiency and costly downtime.

Context and Importance in the Aerospace Sector

The evolution of heavy-lift Unmanned Aerial Vehicles (UAVs) has necessitated a transition from conventional lithium-polymer cells to intelligent battery systems. In the context of the Agras T50 line, the DB1560 battery acts as the heart of the propulsion system, enabling the aircraft to sustain high payloads under harsh environmental conditions.

For fleet operators and specialized air service companies, this component is strategic. The optimized energy density and advanced communication protocol between the battery and the flight controller ensure that the operator has real-time data on cell health, charge cycles, and remaining range. This raises the standard of operational safety, mitigating the risk of critical failures in flight and ensuring that return to home (RTH) occurs with precise safety margins.

What it is and how it works.

The DB1560 Smart Battery (PN: DB1560) is a high-voltage lithium-ion unit with a nominal capacity of 30,000 mAh . It operates through an integrated battery management system (BMS) that constantly monitors the voltage of each individual cell, the internal temperature, and the state of charge (SoC).

When connected to the Agras T50 drone, the battery establishes a data link that allows the control software to adjust power consumption according to the demands of the motors and centrifugal spraying system. Its heat dissipation mechanism is passive, yet highly efficient, using advanced thermal interface materials to ensure that fast charging and high-current discharge do not compromise the chemical integrity of the cells.

Operational Applications of Agricultural Drones

High Flow Rate Spraying Operations

The DB1560 provides the necessary current to power the T50's booster pumps and centrifugal atomizing nozzles, allowing for the uniform application of pesticides over large areas without power fluctuations.

Dispersion of Solids and Seeds

In seed dispersal missions, where the drone operates at maximum takeoff weight (MTOW), the battery ensures the flight stability necessary to overcome the inertia of the payload movement, maintaining a constant altitude and cruising speed.

Fleet Management and Continuous Work Cycle

Thanks to its compatibility with ultra-fast induction chargers, the DB1560 enables the concept of "continuous flight," where charging time is synchronized with field operation time, minimizing the interval between missions.

Technical and Operational Benefits

• Operational Reliability: High-retention cells that minimize the effect of premature degradation, even under intense discharge cycles.
• Data Accuracy: The intelligent monitoring system reports hardware errors and temperature alerts directly to the remote control.
• Fault Reduction: Overcharge, over-discharge, and short-circuit protection integrated directly into the battery hardware.
• Performance Optimization: Designed to maintain a flat discharge curve, ensuring maximum torque to the motors up to the load safety limit.

Key Technical Differentiators

The key difference of the DB1560 battery lies in its structural and chemical robustness. Unlike standard LiPo batteries, the DB1560 casing has corrosion protection and is sealed against chemical residues common in agricultural environments.

Intelligent self-discharge technology is another vital feature: when stored for extended periods, the battery automatically reduces its voltage to the ideal storage level, preventing cell swelling and extending the lifespan of the financial asset. Furthermore, the high-current connectors are plated to minimize contact resistance and prevent overheating at the terminals.

Technical Specifications

• Product Name: DB1560 Intelligent Flight Battery
• Manufacturer: DJI Agriculture
• Part Number (PN): DB1560
• Category: Power System for UAVs
• Main Application: DJI Agras T50 Agricultural Drone
• Capacity: 30,000 mAh (at 52.22 V nominal)
• Approximate Weight: 12.1 kg
• Energy: 1566 Wh
• Interface / Connectivity: Dedicated high-power connector with data pins.
• Operating Temperature: 0°C to 45°C (Charging) / -5°C to 45°C (Discharging)
• Life Cycles: Up to 1,500 cycles (under ideal storage and usage conditions)
• Protection Rating: Dust and splash resistance in accordance with category standards.

Compatibility and Installation Requirements

The DB1560 battery is exclusively compatible with the DJI Agras T50 drone . For charging, it is recommended to use the D12000iE Smart Inverter Generator or the C10000 Smart Charger, ensuring that the manufacturer's communication protocols are respected.

No tools are required for installation; the quick-fit system (Slide-and-Click) ensures both mechanical locking and electrical connection simultaneously. Make sure the connecting pins are clean and dry before insertion.

Important Technical Guidelines and Considerations

To maximize return on investment (ROI), the operator must strictly follow temperature protocols. Never charge the battery immediately after a flight if the internal temperature is above operating limits. Forced ventilation cooling is recommended before recharging.

Storage should be in dry, well-ventilated areas, protected from direct sunlight. It is essential to visually inspect the connectors every 50 cycles to identify any signs of oxidation or arc flash wear.
