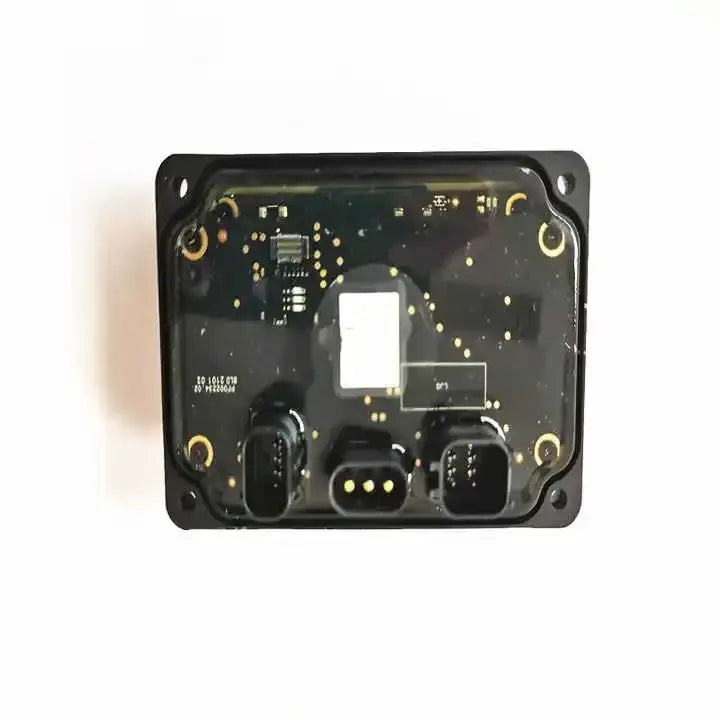

DJI Agras T40 Tank Control Module PN 00000357 – Processing Intelligence for Dispersion and Spraying Systems

The DJI Agras T40 Tank Control Module (Part Number 00000357) is the central logic unit responsible for electronic management and data communication between the tank peripherals and the aircraft's main flight controller. Designed specifically for the T40 drone's payload ecosystem, this module acts as the brain of the payload, processing critical liquid level signals and managing the operational parameters of the distribution system. At Magallan Aerospace Supply, we classify this component as essential for maintaining onboard intelligence, ensuring that spraying and dispersion missions are executed with digital precision and hardware stability.

Context and Importance in the Aerospace Sector

In high-performance unmanned aviation, mission efficiency depends not only on flight capability but also on the precision with which the payload is managed. The PN 00000357 Tank Control Module plays a vital role in the Agras T40 drone architecture, as it interprets sensor readings and executes application commands sent by the automation software.

The importance of this component lies in its ability to integrate complex functions into a compact, sealed unit. In the agricultural aerospace environment, where hardware is exposed to constant vibrations, temperature variations, and chemically aggressive environments, the control module ensures that bus communication between the tank and the drone remains intact. Without this module, the aircraft loses the ability to monitor inputs, making autonomous flights unfeasible and compromising the operational safety of the mission.

What it is and how it works.

The Control Module 00000357 is a low-latency mission computer dedicated exclusively to reservoir monitoring. It operates via a high-density printed circuit board housed in an enclosure protected against electromagnetic interference (EMI).

Upon receiving power from the drone, the module initiates self-diagnostics of connected peripherals, such as the weight sensor or level gauge. During operation, it processes the raw information from these sensors and converts it into data usable by the flight control unit (FCU). Furthermore, it manages the tank identification (Payload ID), allowing the drone to automatically recognize whether it is operating with a liquid spray tank or a solid dispersal system, adjusting the flight profile instantly.

Operational Applications in Professional Drones

Liquid Spray Synchronization

The module manages flow and level data, allowing the drone to adjust the pump flow rate according to the speed of travel, ensuring uniform application even on uneven terrain.

Solid Dispersion System Management

When used in the spray system, the module controls the torque and rotation signals of the reduction gearbox, monitoring the tank load to optimize the aircraft's range.

Precision and Security Telemetry

It provides real-time data to the operator's radio control on the thermal and electrical status of the tank components, preventing critical failures before they occur and allowing for a safe return to base.

Technical and Operational Benefits

• Operational Reliability: Genuine component designed to operate under DJI's encrypted communication protocol, minimizing software errors.
• Processing Precision: Near-zero processing latency, allowing for rapid flow rate corrections during altitude or speed variations.
• Reduced Communication Failures: Sealed connectors and internal shielding prevent short circuits caused by moisture or external radio interference.
• Simplified Integration: Modular unit that is easy to replace, allowing maintenance teams to quickly return the aircraft to service in case of malfunctions.
• Performance Optimization: Intelligent power management that consumes only what is necessary to keep the sensors active, preserving the main battery.

Key Technical Differentiators

The key advantage of the PN 00000357 is its robust design for harsh environments. The internal circuit board is coated with a conformal coating that protects the microcomponents against oxidation caused by chemical vapors and persistent moisture.

Furthermore, the module has a data protection architecture that prevents firmware corruption during voltage spikes. Its dual compatibility—serving both fuel monitoring (in specific smart generator models) and the T40 cargo tanks—demonstrates the versatility of the engineering applied to this mission control component.

Technical Specifications

• Product Name: Tank Control Module / Payload Logic Unit
• Manufacturer: DJI Agriculture (Original Replacement Part)
• Part Number (PN): 00000357
• Category: Payloads / Control Electronics
• Main Application: DJI Agras T40 Drone
• Weight: Approximately 120g
• Power supply: 12V - 48V (DC) via drone connection interface.
• Interface / Connectivity: Multi-pin data port (sealed)
• Operating Temperature: -10°C to 50°C
• Protection Rating: Protection against corrosion and chemical moisture.
• Certifications: DJI Technical Compliance Standard for Professional UAVs

Compatibility and Installation Requirements

The module is compatible exclusively with the DJI Agras T40 platform and its reservoir systems (liquid and solid).

Installation must be performed following ESD (Electrostatic Discharge) protocols to avoid damage to the internal microprocessors. The module must be firmly attached to its base to prevent excessive vibration. After physical installation, it is recommended to update the firmware via DJI Assistant 2 to ensure that the module's software version is synchronized with the aircraft.

Important Technical Guidelines and Considerations

Unlike mechanical components, the PN 00000357 Control Module requires preventive inspections of its connector seals. If the drone displays error messages such as "Payload Connection Error" or inconsistent tank level readings, check for oxidation on the contact pins. Cleaning should be done exclusively with isopropyl alcohol and antistatic brushes. Never apply a direct jet of water to the module, even if it has industrial seals.
