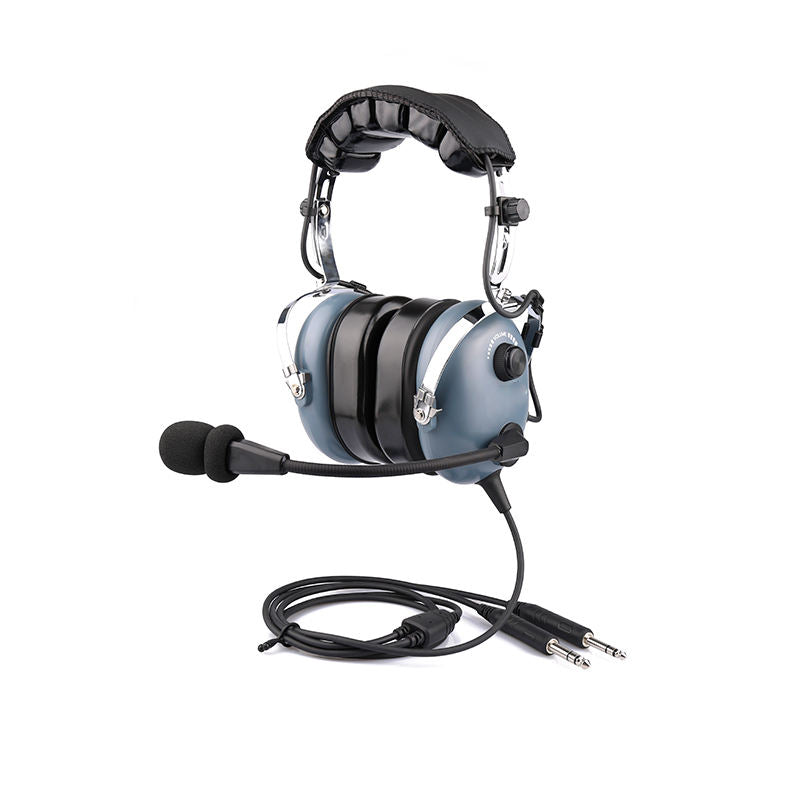

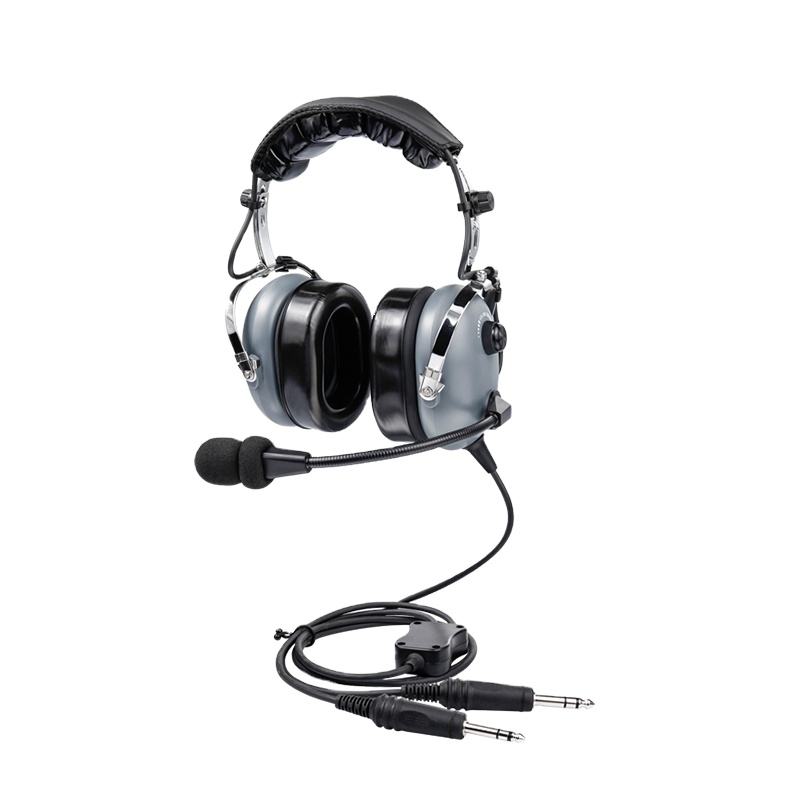

Magallan Aero M-80 Aviation Headset – Stereo Communication for Pilots and Flight Instruction – PN M-80-GA

Context and Importance in the Aerospace Sector

In the general aviation environment, clear communication and hearing protection are non-negotiable pillars for flight safety. The cabin environment, especially in unpressurized piston and turboprop aircraft, presents continuous noise levels that can induce premature fatigue and loss of situational awareness. The Magallan Aero M-80 PNR Aviation Headset , identified by Part Number M-80-GA , emerges as a robust engineering solution to mitigate these risks.

This equipment is vital for both trainee pilots and professionals operating small and medium-sized aircraft. By establishing a physical barrier against ambient noise and ensuring that Air Traffic Control (ATC) instructions are received without distortion, the headset becomes a critical extension of the aircraft's avionics system. In training operations, where intercommunication between instructor and student must be flawless, the reliability of this component is what separates a nominal operation from a communication incident.

What it is and how it works.

The Magallan Aero M-80-GA is an aeronautical communication device that utilizes Passive Noise Reduction (PNR) technology . Unlike active systems that rely on complex electronics and batteries to cancel sound waves, the PNR system uses materials engineering and high-density acoustic sealing to physically block noise from entering the earcups.

The system operates using a set of high-fidelity audio transducers mounted in acoustic cavities isolated by silicone gel and memory foam. The noise-canceling electret microphone is mounted on a precision flexible boom, designed to capture only the frequencies of the human voice, filtering out engine and wind noise. Integration with the aircraft occurs via standard Dual GA connectors, where received audio and voice transmission are processed analogically, ensuring that communication remains functional even in the event of total electrical failures in the aircraft.

Operational Applications in Aviation and Drones

General Aviation (Fixed Wing)

The M-80-GA is the preferred choice for training aircraft, such as the Cessna 150/152/172 and Piper Cherokee models. Its durability makes it ideal for intensive use in flight schools and flying clubs, withstanding multiple daily adjustment cycles without loss of structural integrity.

Rotary Wing Aircraft

In light helicopters, where proximity to the engine and transmission generates high-frequency vibrations, the M-80 gel seal provides superior insulation, maintaining comfort during observation flights or private transport.

Drone Control Stations (GCS)

Although designed for real cockpits, the M-80-GA Headset finds strategic application in ground-based drone control stations (RPAS). Unmanned aerial systems operators working in noisy outdoor environments or near generators use this headset to maintain operational focus and clear communication with ground crews and airspace coordinators.

Technical and Operational Benefits

• Operational Reliability: Being a passive system, the risk of electronic failure is virtually zero. There is no dependence on batteries, ensuring constant communication during long-duration flights.
• Reduced Hearing Fatigue: The 24dB Noise Reduction Rating (NRR) allows the pilot to operate in high sound pressure environments for longer periods without the cognitive strain caused by constant noise.
• Transmission Precision: The microphone with adjustable gain and ambient noise filter ensures that the control tower receives clear messages, reducing the need for readbacks and optimizing radio traffic.
• Simplified Integration: The Dual GA (General Aviation) standard is the most widely used connection protocol in the world, allowing immediate compatibility with 90% of the global light aviation fleet.

Key Technical Differentiators

The Magallan Aero M-80-GA stands out for features that raise the standard of conventional PNR headsets:

• Liquid/Gel Seal: Unlike simple foam ear pads, the gel seal molds around the temples of the glasses and the rider's anatomy, preventing acoustic leaks common in entry-level models.
• Precision Flexible Boom Arm: The microphone arm utilizes a hybrid structure that combines rigidity to maintain position and flexibility for millimeter adjustments, essential in turbulent conditions.
• Stereo/Mono Support: Equipped with a selector switch, the headset adapts to both modern audio systems (stereo) and older avionics panels (mono), preventing audio from being heard on only one side of the earcup.

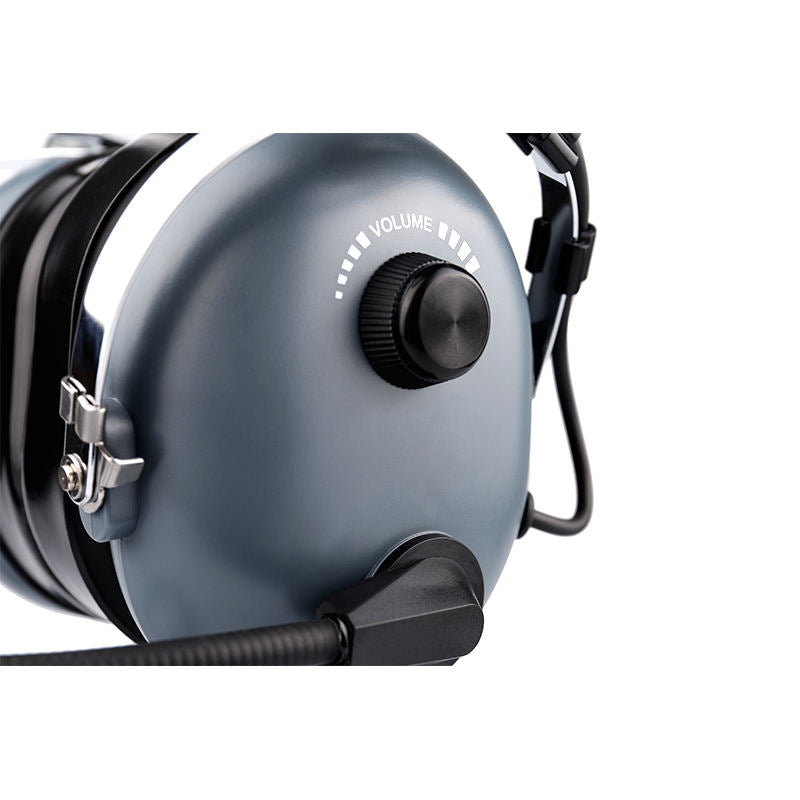

• Individual Volume Control: Allows the pilot to adjust the sound intensity directly on the headset, compensating for volume discrepancies between different radios or cockpit occupants.

Technical Specifications

• Product Name: PNR Aviation Headset with Gel Seal
• Manufacturer: Magallan Aero Supply (Professional Line)
• Part Number (PN): M-80-GA
• Category: Hearing Protection and Communication Equipment (Aviation Headset)
• Primary Application: General Aviation, Flight Instruction and RPAS Operation
• Dimensions: Adjustable (Moldable stainless steel frame)
• Weight: 530 grams (without cables)
• Power supply: Passive (Powered by the aircraft's audio system/intercom)
• Interface / Connectivity: Dual GA Plugs (PJ-055 and PJ-068)
• Operating Temperature: -20°C to +70°C
• Noise Reduction: NRR 24dB (Passive Noise Reduction)
• Impedance: 150 ohms (Selectable Mono/Stereo)

Compatibility and Installation Requirements

The M-80-GA was designed under the compliance standard for general aviation avionics. It is compatible with leading brands such as Garmin, BendixKing, Avidyne, and intercom systems like PS Engineering.

Installation Requirements:

• Connection: Requires two standard female inputs on the aircraft panel (0.250" for headphones and 0.206" for microphone).
• Adjustment: For maximum passive reduction efficiency, the headband should be adjusted to exert even pressure on the temples, ensuring that the gel pads completely enclose the ears.

Important Technical Guidelines and Considerations

To preserve the technical integrity of Part Number M-80-GA , the operator must observe:

1. Ear Cushion Integrity: Regularly check the gel shells for cracks. Any fluid leakage or loss of elasticity drastically compromises the advertised 24dB NRR.
2. Microphone Placement: The electret element is directional. It should be positioned no more than 1cm from the lip for ambient noise cancellation to function as originally designed.

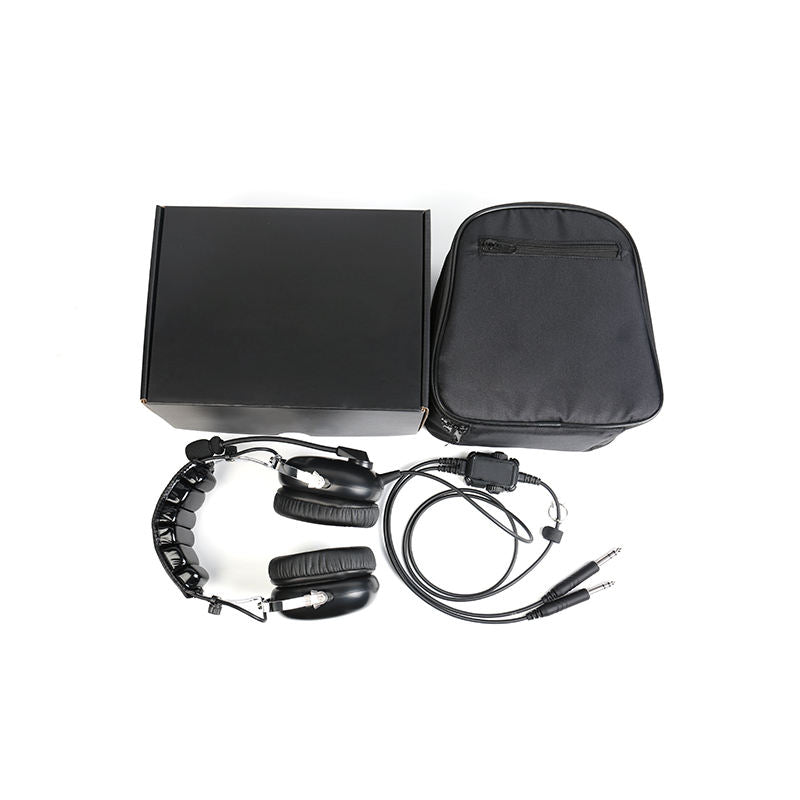

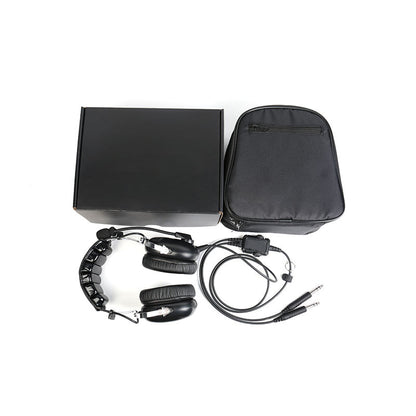

3. Storage: Always use a protective bag to avoid excessive bending of shielded copper cables, preventing internal breaks that cause intermittent noise in the transmission.

Institutional Conclusion

The M-80-GA Headset represents the ideal balance between cost-effectiveness and technical performance for the aerospace sector. Its simplified yet extremely robust construction ensures that communication – the weakest link in flight safety – remains unbreakable under the most demanding operating conditions.
