SIYI ZR10 2K PN Gimbal Camera SIYI-ZR10-30X Aerial Surveillance and Technical Inspection

In the ecosystem of professional-grade Unmanned Aerial Vehicles (UAVs), the ability to obtain high-fidelity visual data at safe distances is a fundamental pillar of operational safety. The SIYI ZR10 Gimbal Camera emerges as a compact ISR ( Intelligence, Surveillance, and Reconnaissance ) solution , integrating capabilities that were previously exclusive to large aerospace platforms.

For unmanned aviation, the integration of a sensor with optical zoom and 3-axis active stabilization is crucial for missions where the drone cannot get close to the target, whether due to safety restrictions, physical obstacles, or to avoid detection. At Magallan Aerospace Supply , we recognize that the ZR10 fills the gap between consumer sensors and military systems, offering robust performance metrics for critical infrastructure inspections and perimeter security.

What it is and how it works.

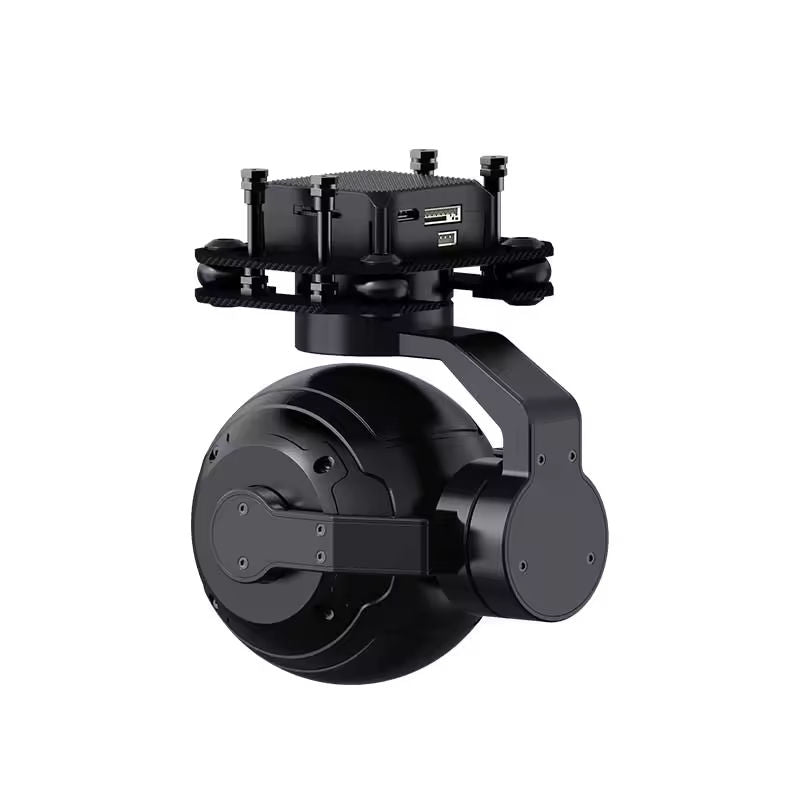

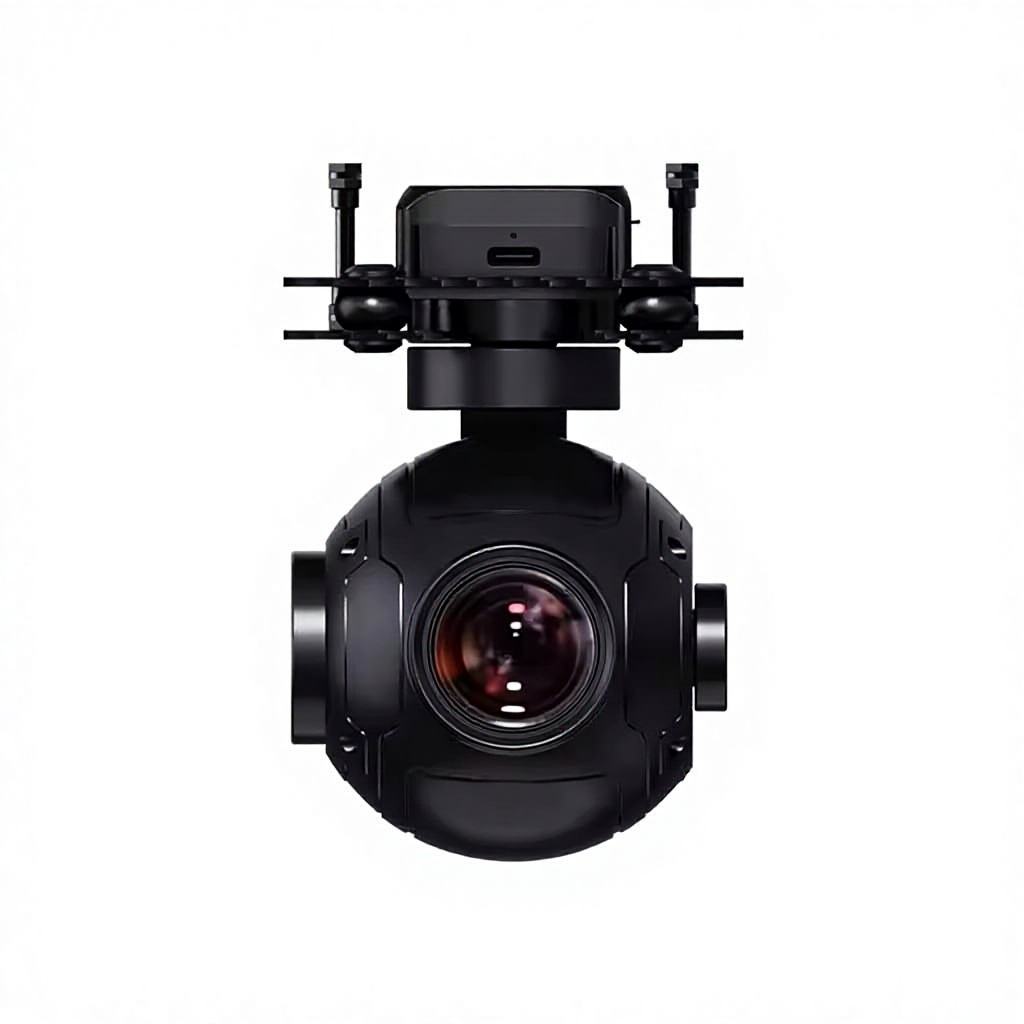

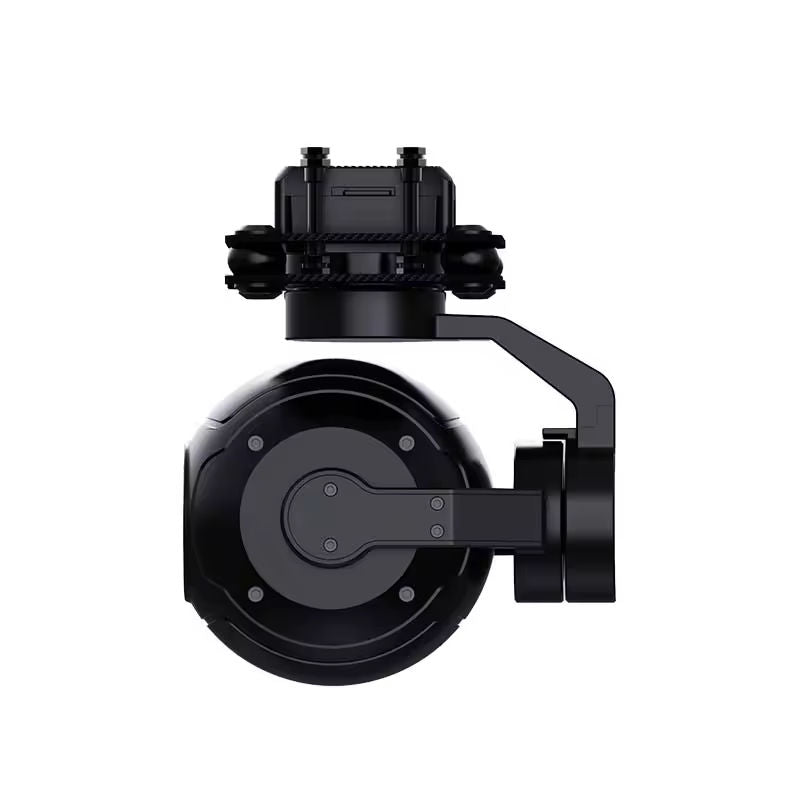

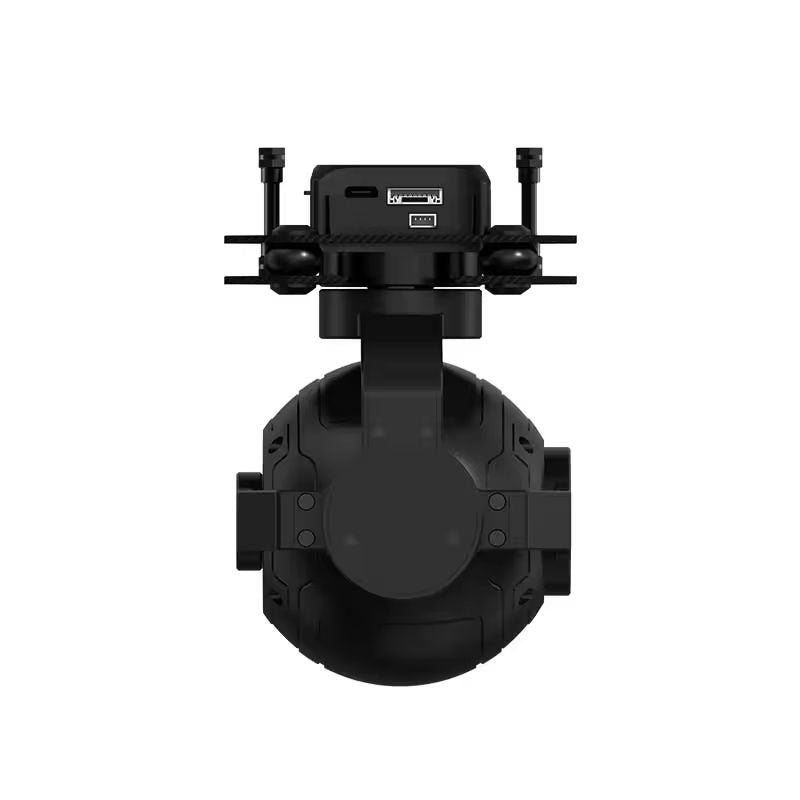

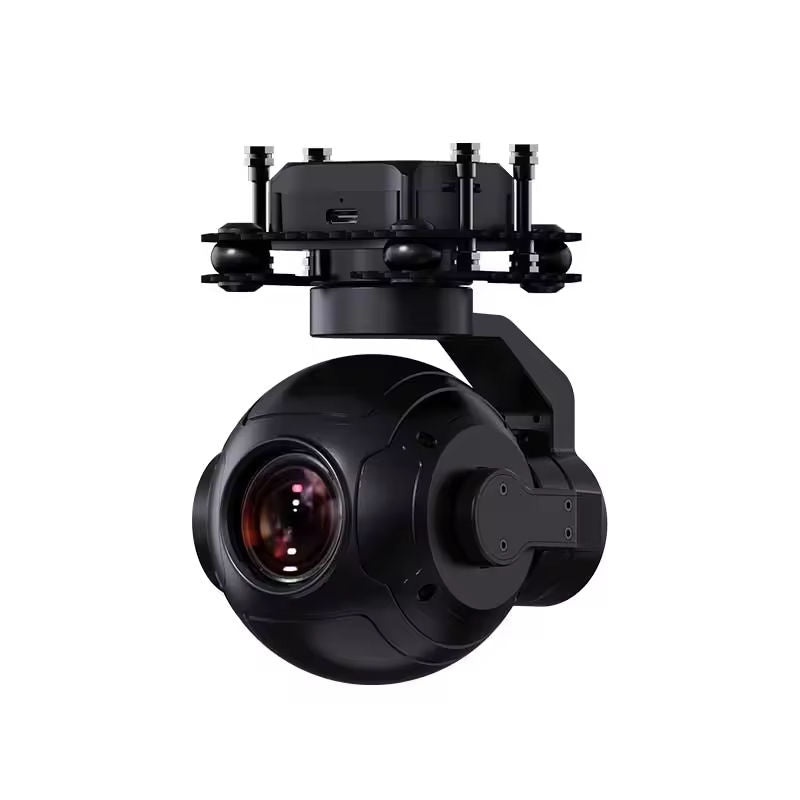

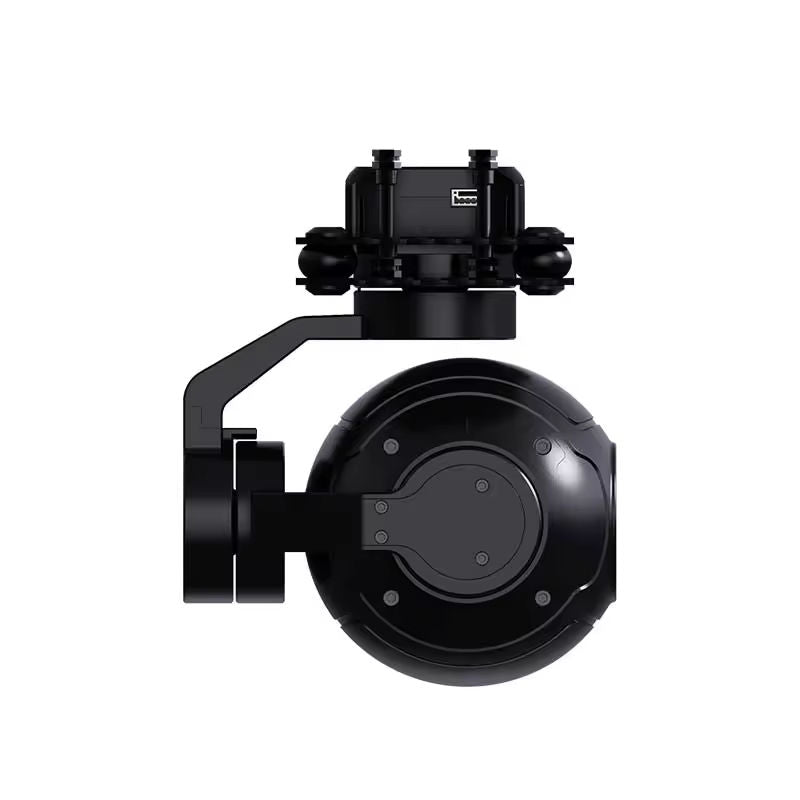

The SIYI ZR10 is a multi-sensor payload that combines a 4-megapixel 2K camera with a 30X hybrid zoom system (10X optical). The hardware is mounted on a high-speed 3-axis mechanical gimbal , which instantly compensates for the aircraft's pitch, roll, and yaw attitudes.

Its operation is based on a 1/2.7-inch CMOS image sensor, optimized for low-light scenarios through Starlight technology . The camera processes video in real time with H.265 encoding, reducing the bandwidth required for transmission without losing latent details. The gimbal uses high-precision encoders and FOC (Field Oriented Control) algorithms to ensure that the image remains static, even during aggressive drone maneuvers or under severe tailwinds.

Operational Applications in Aviation and Drones

Security and Perimeter Monitoring

Ideal for night surveillance and patrolling large areas. The 30X zoom allows for the identification of targets and vehicle license plates from hundreds of meters away, while maintaining the aircraft at a discreet and safe altitude.

Energy Infrastructure Inspection

Used to inspect transmission lines and wind farms. The stability of the gimbal allows the operator to focus on specific insulators or bolts to detect material fatigue without exposing the UAV to the electromagnetic field of the towers.

Search and Rescue (SAR)

HDR mode and Starlight sensitivity assist rescue teams in locating people in dimly lit or forested environments, where visual contrast is low and natural lighting is insufficient.

Technical and Operational Benefits

• Operational Reliability: Chassis constructed from aircraft-grade aluminum alloy, ensuring efficient heat dissipation and structural strength.
• Target Precision: The 10X optical zoom allows you to observe details without the pixelation characteristic of digital zoom, essential for technical expertise.
• Image Flaw Reduction: 3-axis stabilization eliminates the "jelly" effect and high-frequency vibrations from drone motors.
• Simplified Integration: Compatible with RTSP protocols and Ethernet/HDMI outputs via converters, facilitating data linking with ground stations (GCS).
• Performance Optimization: Weighing less than 450g, it minimizes the impact on the aircraft's flight time (range), allowing for longer sorties.

Key Technical Differentiators

• Starlight Night Vision: Captures color images in environments with a minimum illumination of 0.5 lux, surpassing conventional sensors.
• Fast Focus Algorithm: High-speed autofocus system that maintains sharpness even during rapid transitions between different zoom levels.
• SIYI Ecosystem Compatibility: Native integration with video and radio control links from the MK15 and HM30 series, ensuring minimal latency.
• Local Recording Support: High-speed TF card slot, allowing internal 2K recording while the video stream is sent to the operator.

Technical Specifications

Compatibility and Installation Requirements

• Platforms: Compatible with multirotor and fixed-wing drone frames that support bottom or front mounting.
• Control Protocols: Supports MAVLink for full control via Mission Planner or QGroundControl, as well as S.Bus for direct radio control.
• Power supply: Requires a stable 12V to 25.2V power source (compatible with 3S to 6S batteries).

Important Technical Guidelines and Considerations

1. Load Balancing: Ensure the drone's center of gravity (CG) is readjusted after installation, as the gimbal actively moves.
2. Lens Protection: Use UV filters when operating in highly reflective environments (snow or sea) to protect the optical coating.

IMU Calibration: It is recommended to calibrate the gimbal on level ground before the first operation to ensure perfect horizon alignment.
