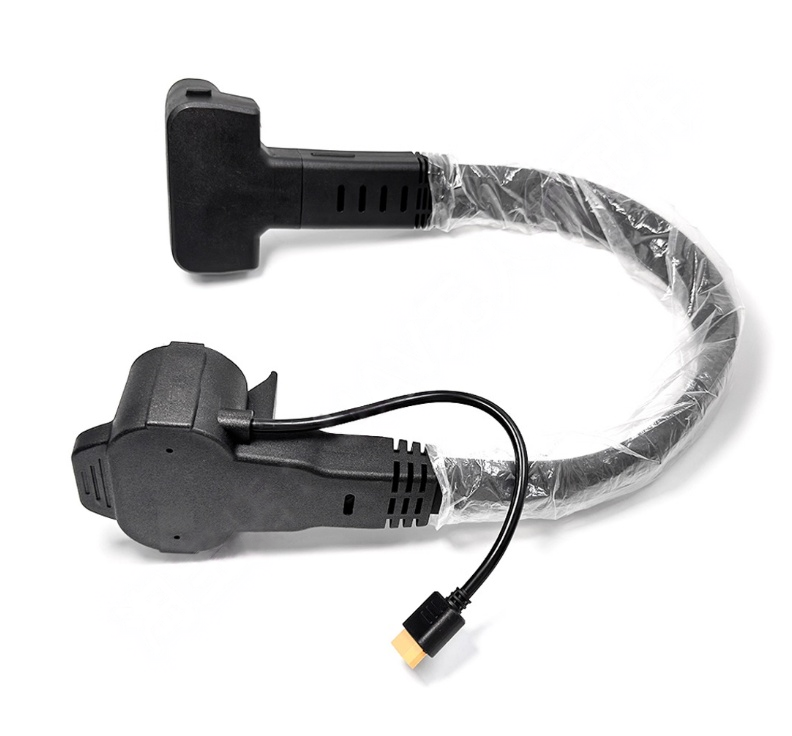

The DJI DB2100 Reverse Adapter Cable (Part Number DB2100-REV) is a high-power electrical infrastructure component designed to enable interoperability between different generations of charging systems and smart batteries from the DJI Agras line. This adapter is the ultimate technical solution for operators using ultra-high-performance chargers and generators (such as the T70, T60, and T100 series) to power batteries in established and current platforms, ensuring that power flow is managed safely without significant ohmic losses. At Magallan Aerospace Supply, we position this item as a vital link in field power logistics, ensuring continuity of operations without the need for complete generator fleet replacement.

Context and Importance in the Aerospace Sector

In the agricultural drone (UAV) sector, battery logistics is the biggest challenge to productivity. The rapid evolution of chargers (smart charging stations) often outpaces the transition of aircraft fleets. The DB2100-REV Adapter Cable emerges as an essential technological bridge for agricultural aviation, enabling the most modern ground infrastructure to support aircraft of varying capacities.

The importance of this component lies in the integrity of the charge transfer. In aerospace environments, adapters are not just "cables," but connection systems that must withstand extremely high currents (amperage) without overheating. At Magallan Aerospace Supply, we understand that a failure in the charge connection can result in permanent damage to smart battery cells or, in the worst-case scenario, field fires. Therefore, this adapter is built to stringent specifications for conductivity and thermal insulation.

What it is and how it works.

The DB2100 Reverse Adapter Cable is an interface conversion cable that uses sealed, industrial-grade connectors to convert power output from generators and chargers to battery input. The term "reverse" indicates its function of matching the output pinout of new-generation charging stations with the input ports of specific battery models.

Internally, the cable is composed of high-purity copper filaments with a gauge designed to support fast charging regimes. It not only transmits electricity but also allows data communication between the battery and the charger (BMS - Battery Management System), ensuring that the charger "reads" the cell status, temperature, and battery cycles to adjust the charging curve safely and efficiently.

Operational Applications in Aviation and Drones

DJI Ecosystem Interconnectivity

It allows very high output generators, such as the D12000i models or T60/T70 charging stations, to interchangeably charge batteries from models such as the T30, T40, and T50.

Ground Infrastructure Unification

Operators with mixed fleets (e.g., T25 and T50) can utilize a single centralized charging station, optimizing space in the support vehicle and reducing investment in multiple heavy generators.

Energy Rescue in the Field

In situations where the primary charger fails, the reverse adapter allows the use of alternative power sources from higher-end models, keeping the fleet operational and preventing downtime due to power outages.

Technical and Operational Benefits

• Operational Reliability: Robust connectors with safety locks prevent accidental disconnections during peak charging.
• Accurate Charging: Maintains the integrity of the data communication protocol, ensuring that fast charging does not degrade the lifespan of the cells.
• Reduced Thermal Failures: Reinforced insulation and plated terminals minimize contact resistance, preventing connector melting.
• Simplified Integration: Plug-and-play design that requires no software configuration; the charger automatically recognizes the battery through the cable.
• Performance Optimization: Allows you to extract maximum power from modern generators even with compatible older generation batteries.

Key Technical Differentiators

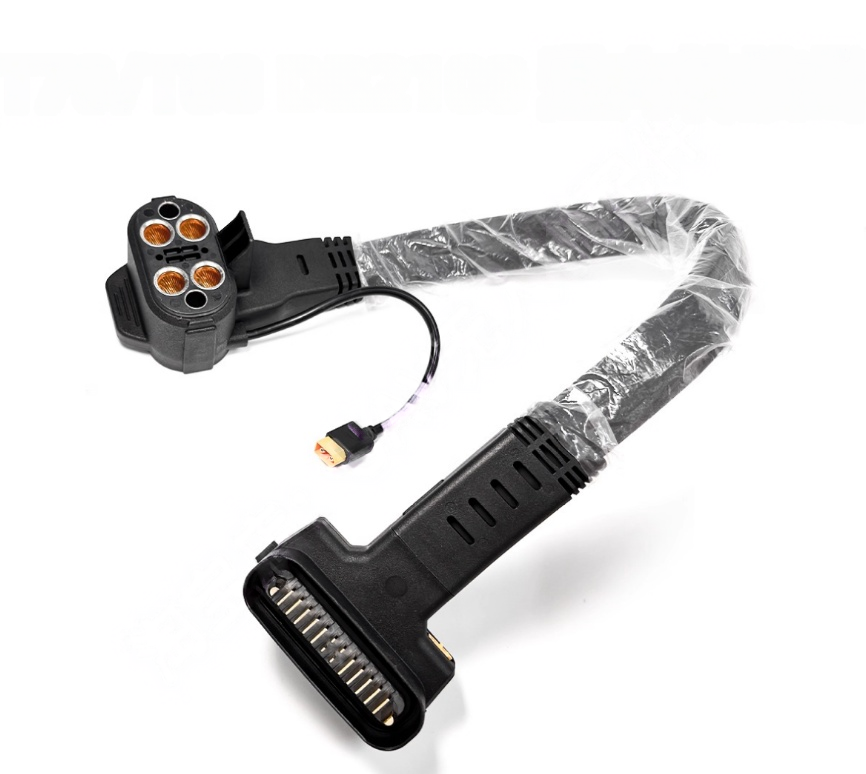

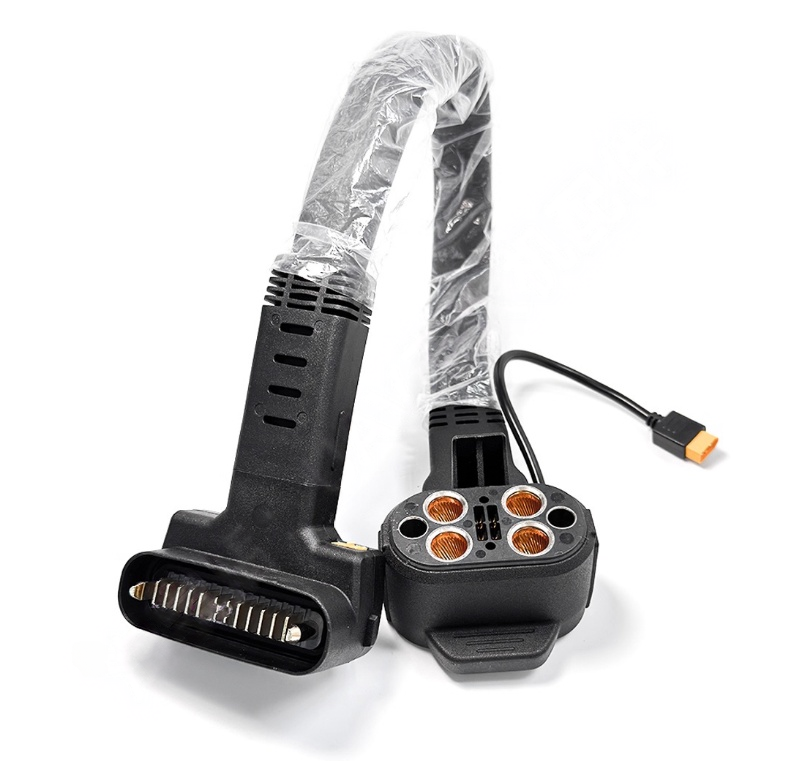

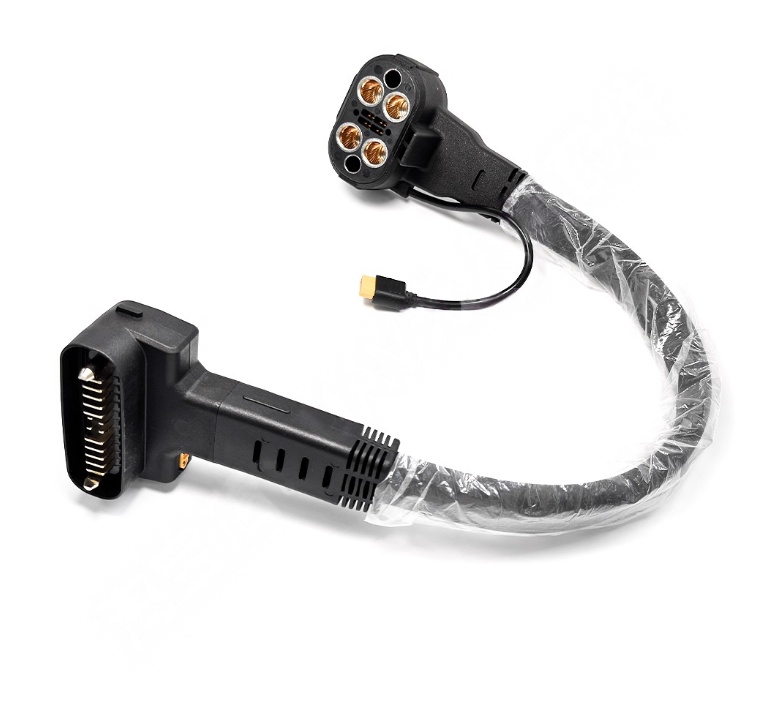

The PN DB2100-REV stands out for its heavy-duty construction . The cable is coated with abrasion-resistant and UV-resistant material, common in agricultural field operations. The connectors have sealing rings that protect the communication pins against dust and moisture ingress, factors that frequently cause charging errors in generic adapters.

Unlike handcrafted solutions, this adapter features internal electromagnetic shielding to prevent electrical noise from the generator from interfering with the smart battery's telemetry, ensuring a 100% stable and safe recharging process.

Technical Specifications

• Product Name: DB2100 Reverse Adapter Cable
• Manufacturer: DJI Agriculture (Original Compatibility)
• Part Number (PN): DB2100-REV
• Category: Power Systems / Ground Infrastructure

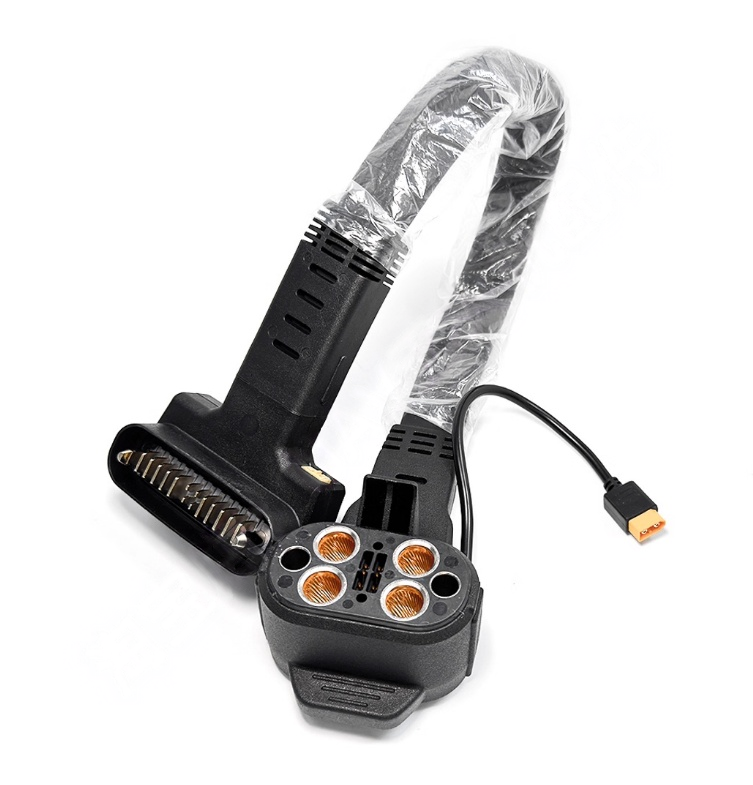

• Main Application: Adaptation of T70, T60, T100 Generators/Chargers for T50, T40, T30, T25, T20P Batteries
• Length: Optimized for low resistance (approx. 0.5mA 1.2m)
• Conductors: High-conductivity electrolytic copper
• Interface / Connectivity: DB2100 Connector (Reverse)
• Operating Temperature: -10°C to 55°C
• Current Capacity: Supports ultra-powerful fast charging regimes.

Compatibility and Installation Requirements

This cable is compatible with the generators and charging stations of the latest series (T60, T70, T100) to power the intelligent batteries of the T20P, T25, T30, T40 and T50 aircraft.

Installation: 1. Connect the corresponding end to the output of the generator/charging station with the equipment switched off. 2. Connect the other end to the DJI Smart Battery. 3. Ensure that the connectors are fully inserted and locked. 4. Turn on the power source and monitor the start of the charging cycle on the charger panel.

Important Technical Guidelines and Considerations

Always inspect the connector pins before each use. Fertilizer residue or dirt can cause electrical arcs that permanently damage both the cable and the battery. Never use the adapter if the cable shows cuts or signs of crushing. It is recommended to store it in a dry place, protected from direct sunlight, when not in use, to preserve the flexibility of the insulation.
