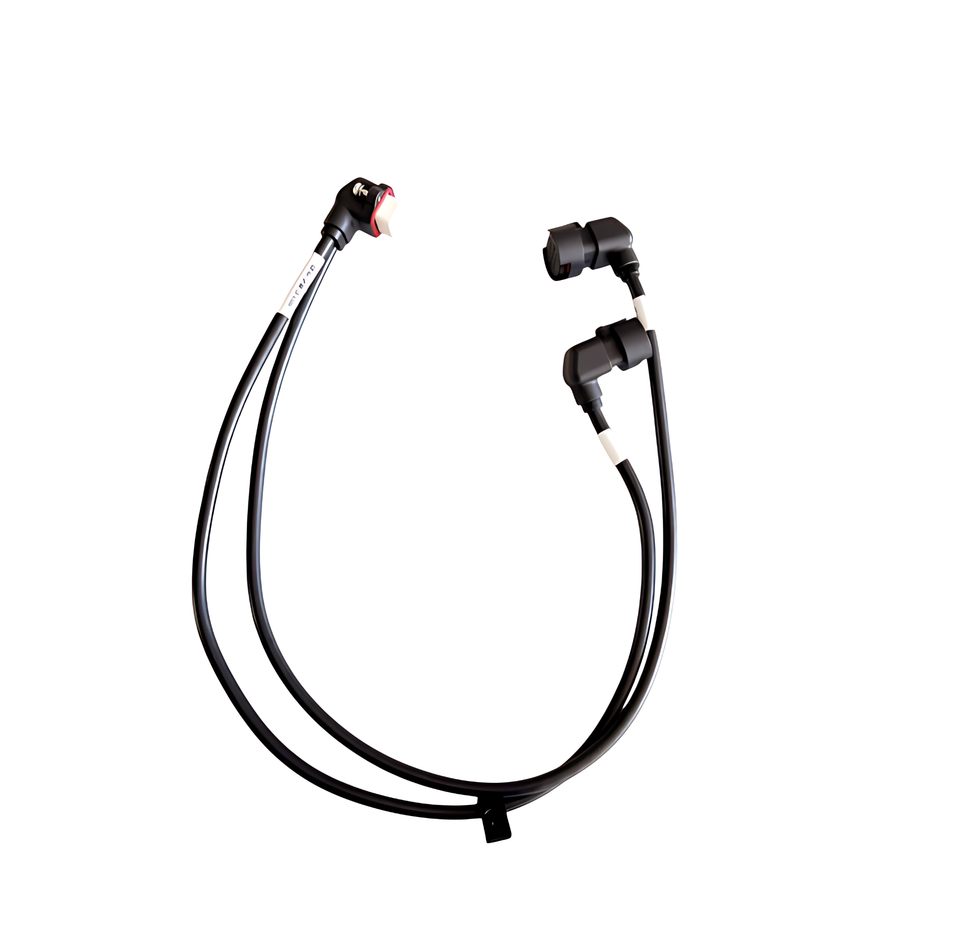

The DJI Agras Spray Nozzle Adapter Cable (Part Number 001409) is a critical interface component designed to ensure communication and flow integrity in the atomization system of next-generation agricultural drones. Acting as the connecting link between the spray nozzle (atomizer) and the arm's control structure, this adapter is fundamental for performing variable rate spraying. At Magallan Aerospace Supply, this item is classified as an essential payload integration component, ensuring that the liquid dispersion system operates with the sealing and electrical response required by professional agricultural aviation standards.

Context and Importance in the Aerospace Sector

In unmanned agricultural aviation, application efficiency is measured by droplet uniformity and the absence of hydraulic system failures. The PN 001409 Adapter Cable plays a vital role in allowing the spraying system to maintain a stable connection under conditions of intense vibration and exposure to corrosive chemical compounds.

The importance of this component in the drone ecosystem, such as those in the DJI Agras line, lies in its ability to prevent leaks and ensure the continuity of the electrical signal to the centrifugal or solenoid atomizing nozzles. In large-scale operations, a damaged or low-quality adapter can result in underdosing or loss of inputs, compromising the effectiveness of the phytosanitary treatment. Therefore, using parts with the original Part Number 001409 is an indispensable preventive maintenance strategy to avoid aircraft downtime during critical harvest periods.

What it is and how it works.

The PN 001409 Nozzle Adapter Cable is a modular assembly that integrates sealed electrical connectors and quick-connect interfaces. It functions as an extension and interface adapter, allowing the spray nozzle to receive activation commands and rotation parameters (in the case of centrifugal nozzles) from the drone's control unit.

Internally, the component uses low-resistance conductors protected by robust shielding. Its locking mechanism ensures that the nozzle remains fixed and perfectly aligned with the spray arm, even during abrupt maneuvers or high-speed flights. The sealing at the ends prevents the spray solution—often conductive or corrosive—from penetrating the electrical terminals, preventing short circuits and communication failures in the payload system's data bus.

Operational Applications in Aviation and Drones

Integration of Spraying Systems

It works by directly connecting atomizing nozzles on spraying drones, enabling communication between the nozzle and the arm, which is essential for individual control of each spray output point.

Variable Rate System Maintenance

Essential for operations requiring digital precision in application, where the adapter transmits frequency and flow adjustment signals in real time.

Field Replacement and Quick Repair

Due to its easy-to-attach design, it is the ideal item to include in operators' "Safety Stock," allowing for immediate replacement in case of mechanical damage caused by impacts or chemical wear.

Technical and Operational Benefits

• Operational Reliability: Industrial-grade connectors ensure a firm connection, eliminating false contacts caused by motor vibration.
• Precision in Application: Ensures the nozzle receives the correct activation signal, maintaining the consistency of the droplet pattern defined in the flight plan.
• Failure Reduction: High-level sealing that protects sensitive electronics against the ingress of liquids and airborne dust.
• Simplified Integration: Native compatibility with DJI's arm architecture, allowing for quick installation without the need for special tools.
• Performance Optimization: Low signal loss and electrical resistance, ensuring maximum efficiency of the payload's peripheral components.

Key Technical Differentiators

The PN 001409 stands out for its superior chemical resistance . Unlike conventional cables, the coating of this adapter is made with polymers resistant to concentrated solvents and herbicides, which tend to degrade common materials quickly.

Furthermore, the adapter features plated contacts that prevent galvanic oxidation, a common problem in humid environments and those with mineral salts. The ergonomic design of the connection lock allows the operator to perform maintenance or nozzle changes even while wearing protective gloves, streamlining field logistics processes without compromising assembly safety.

Technical Specifications

• Product Name: Nozzle Adapter Cable
• Manufacturer: DJI Agriculture (Original Replacement / High-Performance Compatible Part)
• Part Number (PN): 001409
• Category: Payloads / Accessories & Integration
• Main Application: Connecting spray nozzles to DJI Agras drones (T100 and compatible models).
• Conductor Material: High-purity copper with anti-corrosion coating.
• Interface / Connectivity: IP-sealed multi-pin connector
• Operating Temperature: -10°C to 60°C
• Weight: Optimized to not interfere with the arm's center of gravity.

Compatibility and Installation Requirements

The adapter cable is compatible with the most advanced DJI spray systems, including planned support for the Agras T100 architecture and models that share the same nozzle interface.

Installation:

1. Disconnect the power supply to the spraying system.
2. Insert the adapter into the corresponding port on the drone arm, ensuring the locking click.
3. Connect the spray nozzle to the opposite end of the adapter.
4. Visually check that the seal is properly seated to prevent the grout from entering.

Important Technical Guidelines and Considerations

Periodic inspection of connectors for dried pesticide residue is recommended. Accumulated material can hinder connection and generate unwanted electrical resistance. Never use petroleum-based lubricants on connectors, as they can damage the rubber seals; if necessary, use only contact cleaner specifically designed for electronics. During storage, avoid sharp bends in the cable to prevent internal fatigue of the conductors.
